What is Stress? – The Foundation of Material Mechanics

Understanding stress is like learning how materials react when you push, pull, or press on them. In engineering, stress has nothing to do with feelings—it means the force inside a material when it’s loaded from the outside. It helps us figure out how much a material can resist breaking or changing shape. Knowing about stress is the first step in making sure buildings, machines, and other structures are safe and strong.

What is Stress?

Stress is a measure of how much force is applied to a certain area of a material. Think of it as how hard you’re pushing or pulling on something, spread out over the surface you’re pushing or pulling on. The basic equation is:

\[ \sigma = \frac{F}{A} \]

Where:

• \( \sigma \) = Stress (in Pascals, Pa)
• \( F \) = Applied force (in Newtons, N)
• \( A \) = Cross-sectional area (in square meters, m²)

So, if you apply a big force on a small area, the stress is high. If the area is large, the stress is lower, even with the same force.

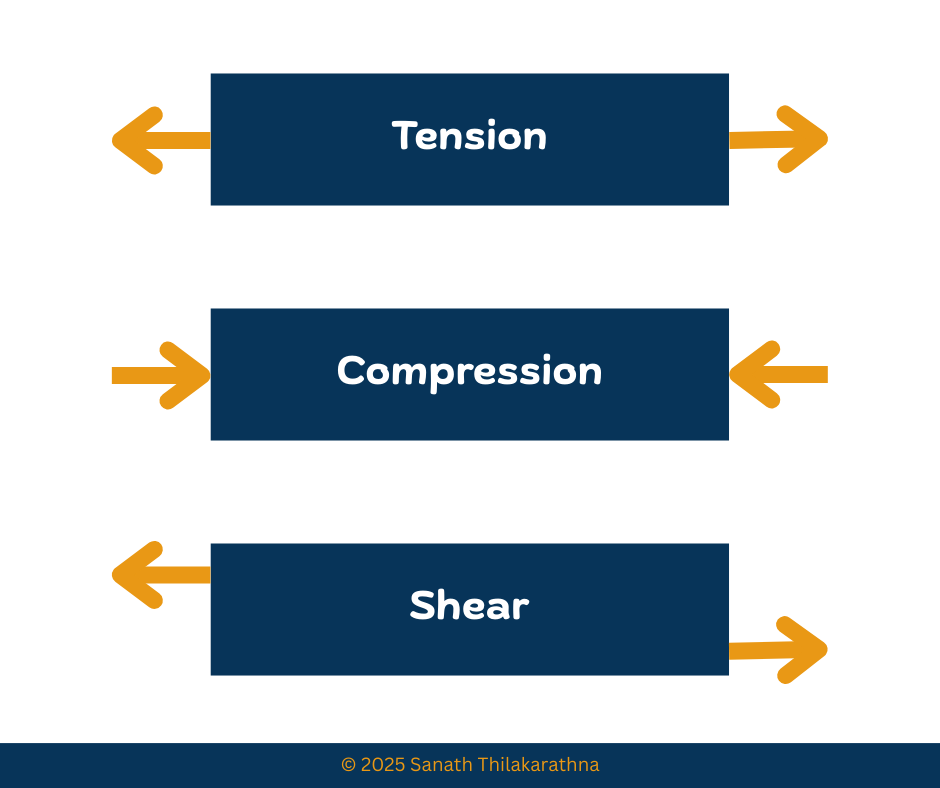

Types of Stress

Stress shows up in different ways based on how the force is acting on the object:

1. Normal Stress (\( \sigma \)) – This is when the force is acting straight on the surface, either pulling or pushing.
   • Tensile stress pulls the material apart, like when you stretch a rubber band.
   • Compressive stress pushes the material together, like when you press down on a sponge.

2. Shear Stress (\( \tau \)) – This is when parts of the material are pushed in opposite directions, like how scissors cut paper by sliding the blades past each other.

3. Bearing Stress – This happens when two solid objects press against each other in a small area, like when a bolt presses against the inside of a hole.

Importance in Design

Knowing about stress helps engineers figure out how much force a material or part can take before it breaks or changes shape. It’s one of the first things they check when designing anything. For example:

• It helps pick the right material for the job
• It helps decide how thick or strong something needs to be
• It helps avoid accidents by making sure things don’t fall apart

If engineers don’t think about stress, things like bridges, machines, or cars could break suddenly and cause serious problems.

Stress is one of the most important and simple ideas in engineering. Once you understand what stress means and how to calculate it, you can guess how materials will react when you push or pull on them. This helps engineers build things that are strong and safe. That’s why learning about stress is the first step in understanding how materials work.
