Understanding Strain – How Materials Deform

When you stretch, squeeze, or twist a material, it changes shape or size. This change is called strain. While stress tells us how much force is applied to a material, strain tells us how much the material changes in response to that force.

What is Strain?

Strain means how much a material stretches or squashes when you apply a force. It shows the change in shape or size compared to what the material was before.

Strain is calculated using this simple formula:

\[ \varepsilon = \frac{\Delta L}{L_0} \]

Where:

• \( \varepsilon \) = Strain (no units)
• \( \Delta L \) = How much the length changed
• \( L_0 \) = The original length

Strain doesn’t have any units because it’s just a comparison between lengths.

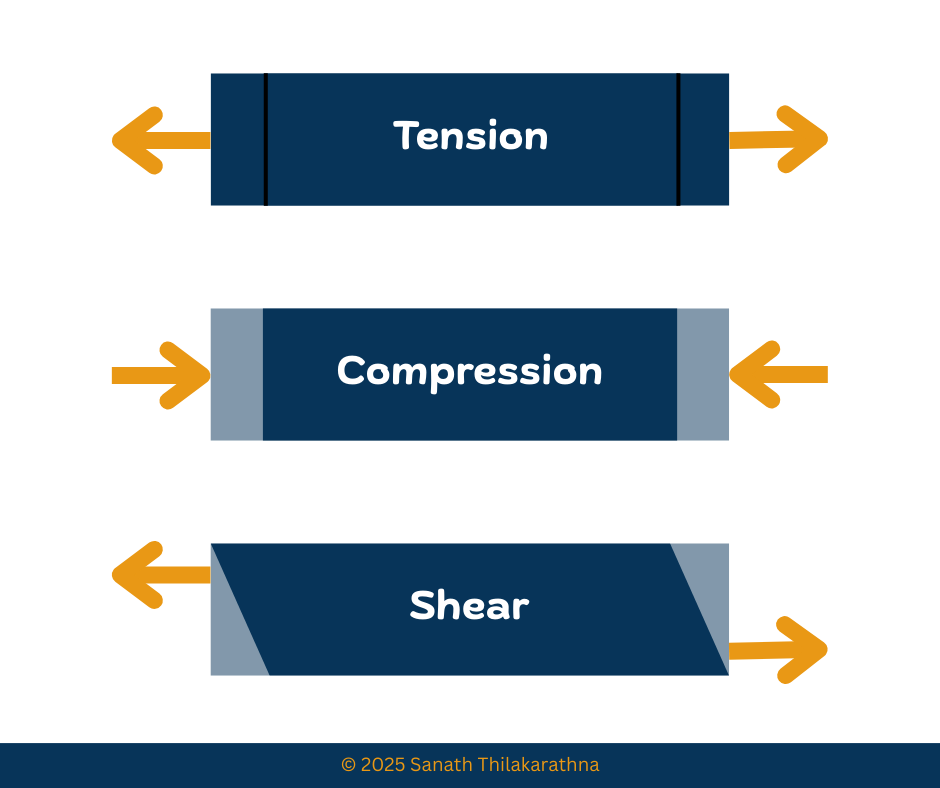

Types of Strain

1. Normal Strain – This happens when you pull or push a material:
   • Tensile strain: The material gets longer (like stretching a rubber band).
   • Compressive strain: The material gets shorter (like squeezing a sponge).

2. Shear Strain – This happens when one layer of a material slides past another, like pushing the top of a stack of books sideways.

3. Volumetric Strain – This shows how much the total volume of the object changes, like when you squeeze a foam ball and it gets smaller in all directions.

Why is Strain Important?

Strain helps engineers understand if a material will still work after it’s been used. Even if something doesn’t break, it might not be useful if it bends or stretches too much. Engineers use strain to:

• Check if a part stays the right size when it’s loaded
• Make sure something doesn’t bend too much
• Compare materials like soft rubber and hard metal

Real-Life Examples

• A rubber band shows a lot of strain when stretched.
• A steel rod shows very little strain even under big force.
• Foam in a seat gets compressed (strain) when someone sits on it.
• Buildings are designed to handle shear strain during earthquakes.

Conclusion

Strain tells us how much a material changes shape when a force is applied. It works together with stress to help us understand how materials behave. Knowing about strain helps engineers design safe and strong structures.
